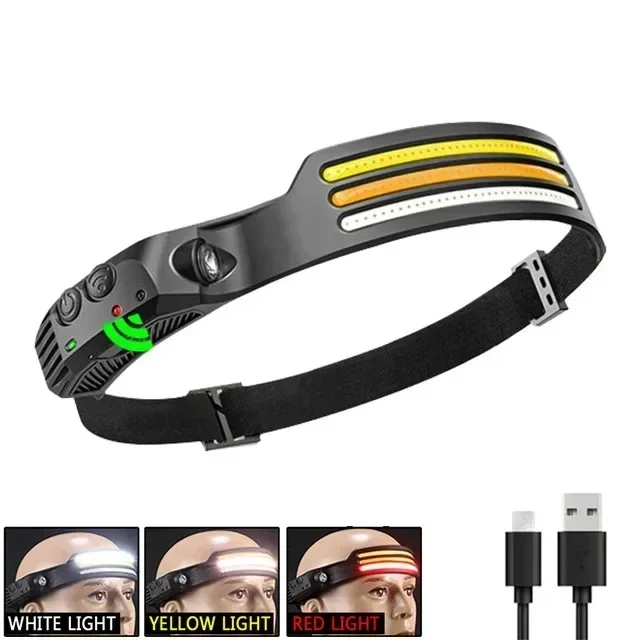

High-Performance, 3-Color Mode W689-3 LED Headlamp
The W689-3 LED Headlamp is a powerful and versatile lighting solution designed for camping, fishing, hiking, emergency repairs, and more. Featuring four light sources (COB White, COB Yellow, COB Red, and XPE White) with 8 lighting modes, it provides optimal illumination for various outdoor and indoor activities. Its motion sensor control allows for hands-free operation, while its lightweight and adjustable headband ensures a comfortable fit. The IPX4 water-resistant rating makes it resistant to splashes, ensuring reliable performance in wet conditions.
Key Features:
230° Wide COB Beam & 450 Lumens Brightness: Provides a wide and bright field of view without adjusting your head.
8 Lighting Modes: COB White (Strong/Weak), COB Yellow (Strong/Weak), COB Red (Strong/Flashing), XPE White (Strong/Weak).
Hands-Free Motion Sensor Control: Easily turn the headlamp on/off with a simple hand wave.
Lightweight & Adjustable Headband: Comfortable fit for extended use.
IPX4 Water-Resistant: Resistant to water splashes, perfect for outdoor activities.
USB Type-C Charging: Convenient recharging via standard USB-C.
Usage Instructions:
Power Button: Press the power button once to turn on the headlamp (first mode). Keep pressing once each time to cycle through the modes in sequence. The headlamp will turn off after the last mode.
Motion Sensor Button: The second button, with the signal symbol, is for hands-free operation. Press this button at any time to turn the motion sensor on or off. This can be done at any mode and at any point during operation.
Using the Motion Sensor: To turn the headlamp on or off using the motion sensor, simply wave your hand in front of the sensor (within the sensing range).
LED Indicators:
When the headlamp is operating or charging, the LED indicator will be red.
When fully charged, the LED indicator will turn green.
When the sensor is activated, the LED indicator will be both green and red simultaneously.
When the battery is low, the LED indicator will flash red.
Specifications:
Model: W689-3
Battery Type: Lithium Ion 18650 3.7V 800mAh (Voltage Range: 4.2V when fully charged)
Working Voltage: 3.0V - 4.5V
Light Sources: 3 COB LEDs (White, Yellow, Red) + 1 XPE White LED
Beam Angle: 180° Wide Beam
Water-Resistant Rating: IPX4 (Resistant to splashes, not submersible)
Body Material: Silicone
Charging Time: 1 hours
Operation Time: Up to 2 - 6.5 hours
Lighting Modes (Total 8):
COB White: Strong (350 lm) / Weak (130 lm)
COB Yellow: Strong (350 lm) / Weak (130 lm)
COB Red: Strong / Flashing (instead of weak mode)
XPE White: Strong (120 lm) / Weak (50 lm)
Color: Black
Weight: 90g
Package Contains:
1 x W689-3 LED Headlamp
1 x USB-C Charging Cable
1 x User Manual
