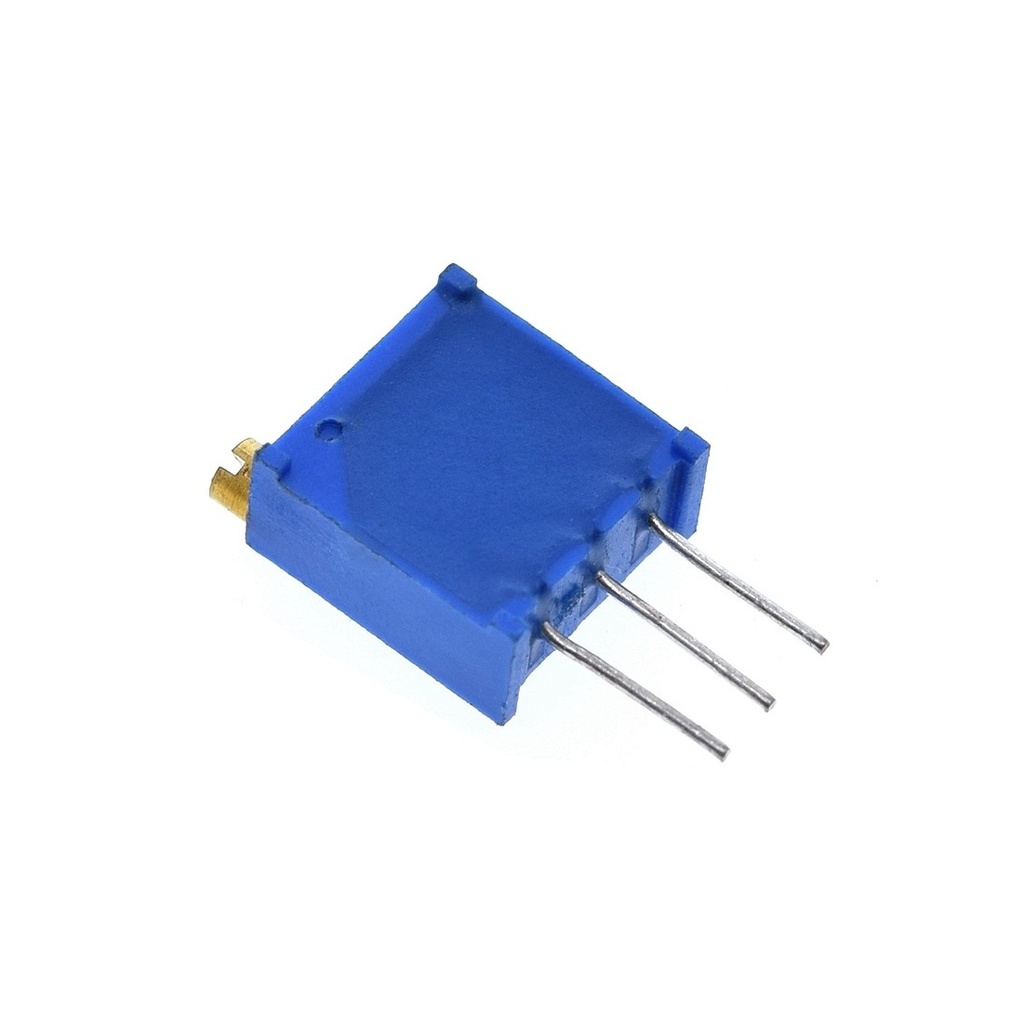

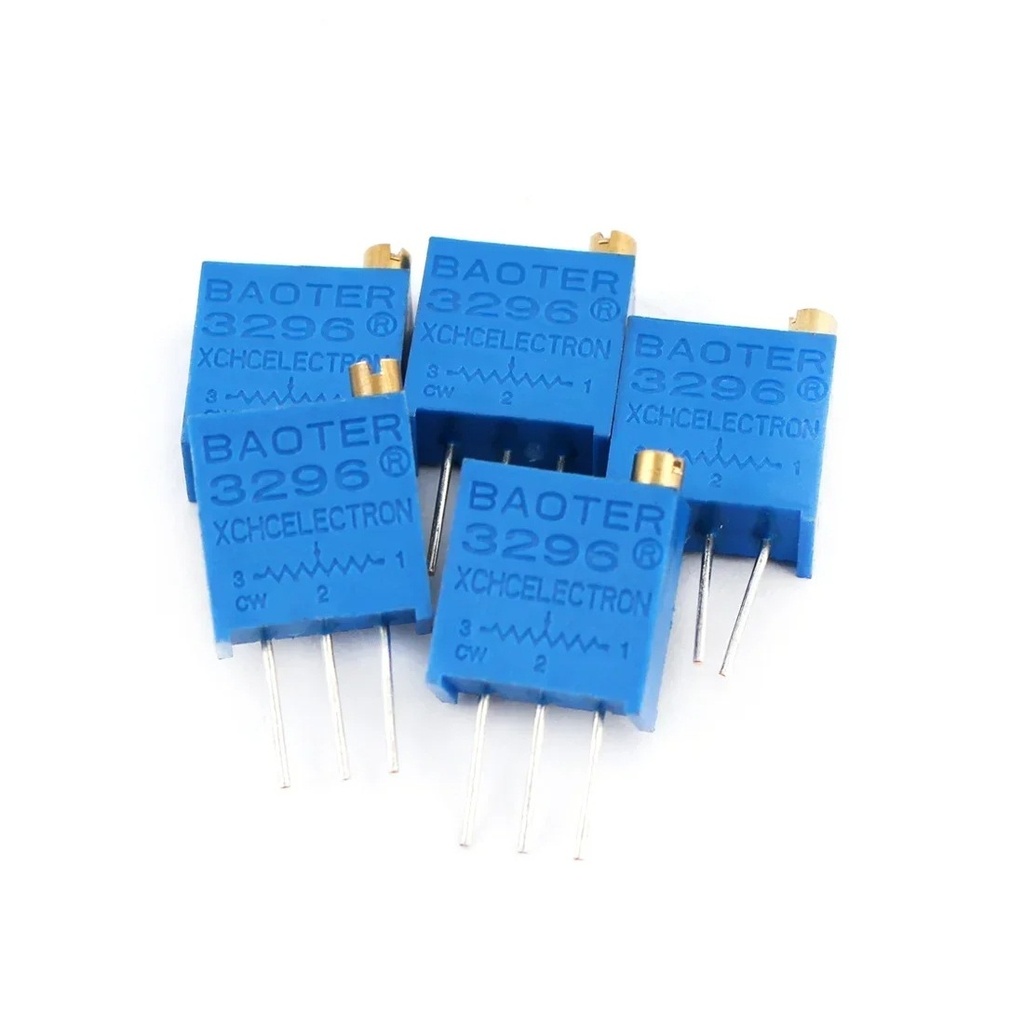

3296W-104 Trimpot – 100K Multiturn Cermet Potentiometer (Bourns)
3296W-104 Trimpot – 100K Multiturn Cermet Potentiometer (Bourns)
The 3296W-104 is a high-precision 100 kΩ multiturn trimmer potentiometer engineered for stable and repeatable resistance tuning. With 25-turn adjustability and a long-life cermet element, this Bourns component is ideal for professional electronics, audio circuits, power supplies, and calibration devices.
The trimpot is constructed with a sealed ABS shell and gold-plated copper terminals for durability and electrical stability. Its low contact resistance and fine resolution make it ideal for fine-grained signal and voltage adjustments in analog or digital systems.
Key Features:
-100 kΩ resistance value with ±10% tolerance
- 25-turn precision trimming for accurate calibration
- Cermet element for thermal stability and long-term reliability
- Through-hole PCB mounting with standard PC pins
- Sealed enclosure for protection from dust and contaminants
- Power rating of 0.5 W at 70 °C
- ±100 ppm/°C temperature coefficient
- Reliable rotational life – over 200 cycles
- Space-efficient 3/8” square footprint: 9.53 × 9.53 × 5.08 mm
Specifications:
Resistance: 100 kΩ (marked W104)
Power Rating: 0.5 W @ 70 °C
Tolerance: ±10%
Material: Cermet track, ABS housing
Mounting: Through-hole (PC pins)
Operating Temp: –55 °C to +125 °C
Max Operating Voltage: 200 V
Weight: ~0.85 g
Color: Blue
Package Contains:
1 × 3296W-104 Trimpot – 100K Multiturn Cermet Potentiometer (Bourns)
